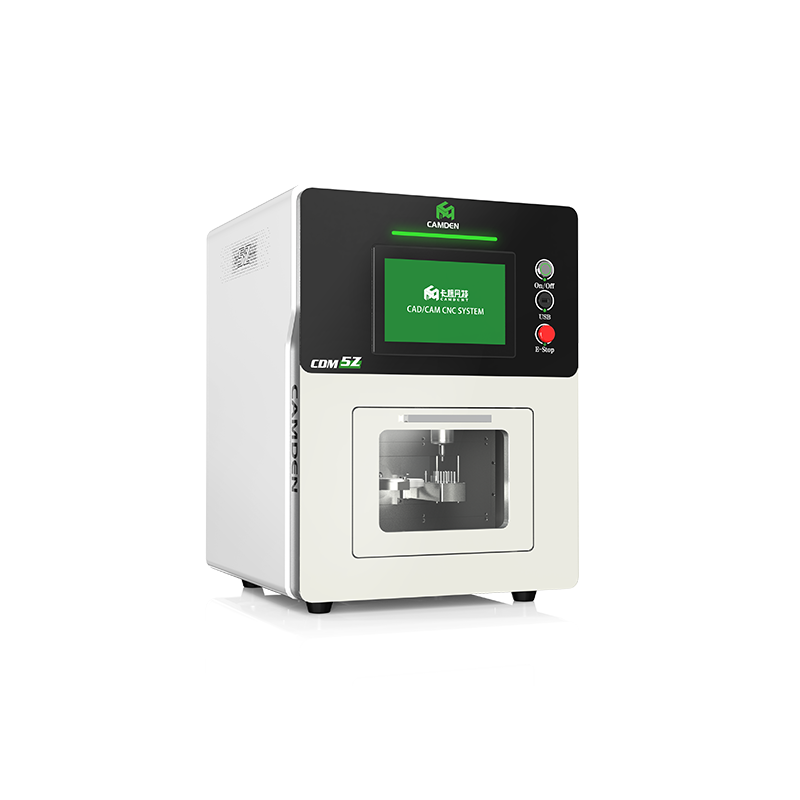

Camdent CDM5Z
CDM5Z 5-Axis zirconia dental milling machine
block- & blank machining possible
Simple operation via touch screen
up to 6 milling tools with 4 mm shaft diameter
up to 5-axis machining
Dry milling possible
Highlights of the Camdent CDM5Z
MONO BLOCK CAST BODY
novel closed mono-block cast body for stability and precision
AIR COOLED
SELF-SUFFICIENT OPERATION
Air pressure range 0.55-0.6Mpa（ No oil and No water )
SCANNER COMPATIBLE
with all open scanners (STL)
HIGH-PERFORMANCE SPINDLE
high end spindle for milling and grinding up to 60.000 rpm
ADAPTER VARIETY
Adapter for all common blocks

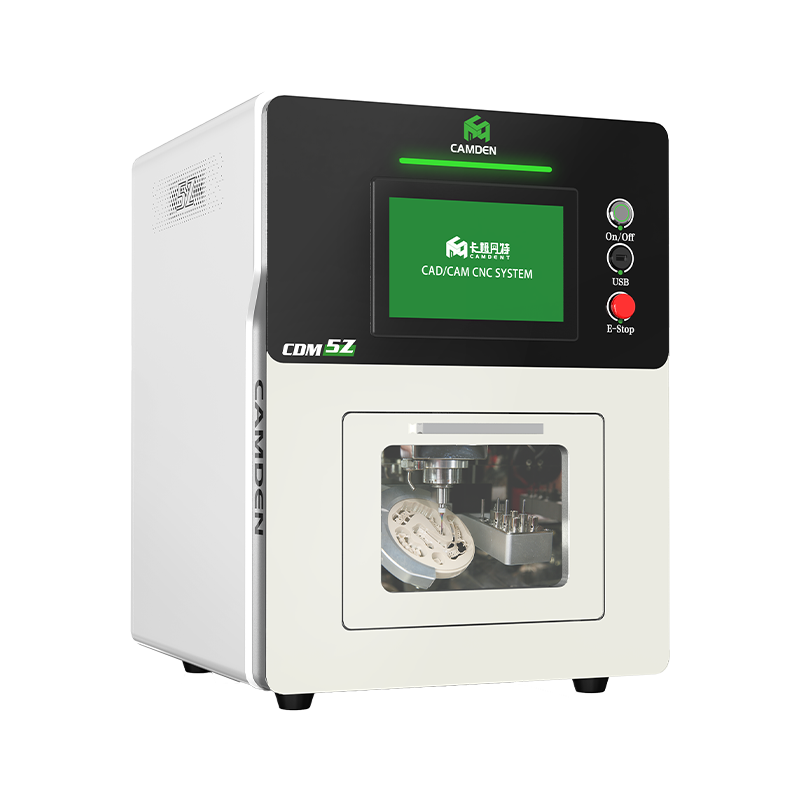

Camdent CDM5Z
CDM5Z is a 5-Axis dry-milling machine for dental CAD/CAM system with wide range of materials, featuring high accuracy, durable stability and excellent compatibility. It is an ideal choice for high-precision restorations including bridges, frames, splint, abutment,base and complicated operations like zirconia perforation. Equipped with premium spindle, imported core parts, smart CAM nesting system and intelligent touch screen, CDM5Z  offers better disc handling, wider material capabilities, automatic tool change to deliver a higher efficiency.
Highlights - Camdent CDM5Z


Key features:

1. Compact structure

compact size 500mm*650mm*620mm

Length × Width (Depth) × Height

2. Box structure

High rigidity,not easy to deformation

3. Comprehensive alarms of the protections

Low pressure of the air cooling: low pressure of the changing,unsuccessful returning the knife,breaking the bur when cuts,wrong type of the burs.

4. Open controller system

This system supports international ISO standard G code, compatible with popular CAM software, such as HyperDent，Sun3d millbox,GO2dental,WorkNC dental, Delcam Dental etc.

5. Intelligent processing


Camdent CDM5Z
Camdent CDM5Z
Scanner

CS360Pro 3D Scanner


CAD SOFTWARE

exocad

Chairsidecad

CAM SOFTWARE

HyperDENT

GO2Dental

MillBox

workNC


Materials

Wax

PMMA / PEEK

Zirconia


TOOLS

Milling and

grinding tools


CAMDENT CDM5Z
Applications of Camdent CDM5Z
PMMA
WAX
zr-pre sintered
Zr-full dense sintered
PEEK
COMPOSITE
glass ceramics
SINT
Pre-milled CoCr-Abutment
Pre-milled Ti-Abutment
Standard
Standard
Dentures
Dentures
Block
Block
Crown, bridge
Crown, bridge
Inlay, Onlay, Veneer
Inlay, Onlay, Veneer
Bridge larger 3 units
Bridge larger 3 units
Splint
Splint
Full Denture
Full Denture
Model
Model
Drilling template
Drilling template
Model casting
Model casting
Bridge
Bridge
Telescopic technology
Telescopic technology
Abutment
Abutment
Hybrid Abutment
Hybrid Abutment
Full Denture
Full Denture
Camdent CDM5Z -MOVIE
Technical Perameters
Name
5 Axis dental CAD/CAM milling machine
Model
CDM5Z
CNC controller
 5 axis dental system with touch screen
Milling mode
Dry
Millable material
Zirconia，PEEK，Wax，PMMA
Product type
Crown, Bridge,Implant Bridge.Veneer , Onlay,inlay,Copng,Abutment, Sugcal Gude & Ful Denture.，
Spindle power
500W
Speed of spindle
3000-60000rpm/min
X/Y/Z axis motor
servo motor
Spindle cooling
Air-cooled
A/B axis motor
A:100W B:200W
Rotation range A axis
±360°
Rotation range B axis
-110°~+35°
Number of burs(tool) housed
6pcs
Attachable bur(tool) shank diameter
4mm
Attachable bur(tool) Length
45mm
Tool change and check
Fully automatic
Compatible compressed air
0.6MPa
Loadable workpiece shape External Diameter
98mm-98.5mm
Loadable workpiece shape Max Height
30mm
Loadable workpiece shape Min Height
10mm
External dimensions Length
500mm
External dimensions Width (Depth)
650mm
External dimensions Height
620mm
Packing dimension
780*750*980mm(Lx W(D)xH)
Net Weight
110kg
G.weight
146kg
Input Voltage
Single-phase 220V 50Hz/60Hz
Control command set
NC code
Average milling time (dental crown) Zirconia
8-15 min
Average milling time (dental crown) Wax
3-6 min
Average milling time (dental crown) PMMA
8-10 min
